Tractor Mounted Depth 200m Water Well Drilling Rig

Product Categories

TIANJIN COMMAND MACHINERY MANUFACTURING CO.,LTD

Contact Now

Name: Tractor Mounted Depth 200m Water Well Drilling Rig
Brand: COMMAND
Price: 1 USD

Brand Name : COMMAND

Model Number : CDTL-200

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 10+SET+per35DAYS

Delivery Time : 35days

Packaging Details : 40 FR OR BULK CARGO SHIP OR RO RO SHIP

MODEL : CDTL-200

DEPTH : 200M

DRILLING DIAMETER : 90MM-400MM

CHASSIS : TRACTOR

DRILLING METHOLD : MUD DRILLING AND DTH-HAMMER AND OTHER

DRILL TOWER : LOAD 15TON

LIFTING FORCE : 10 TON

DRILL PIPE : 73MM/89MM/114MM/127MM

DRILL PIPE LENGTH : 3M

Contact Now

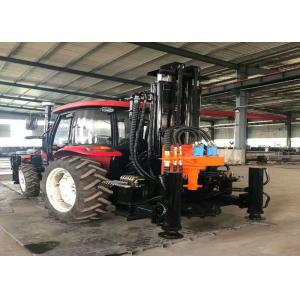

TRACTOR MOUNTED WATER WELL DRILLING RIG DEPTH 200M TOP HEAD DRIVE USE MUD AND DTH HAMMER

The integrated design of drilling machine and tractor makes it easy to handle, fast and efficient. It can be drilled by air compressor and mud

CDTL-200 top head drive water well drilling rig
Comprehensive overview
Depth:200M Aperture:90MM-400MM Dimensions；3000mm×1300MM×1950MM Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
A.parameter
Code		Parameter	Remarks
1	Borehole diameter	90MM-311MM
2	Drilling depth	200M
3	Running speed	30KM/H
4	Working air pressure	0.7-2.5MPA
5	Air demand	5-30m³/MIN
6	Skyscraper travel	1800MM/2000MM
7	Maximum Torque	4500NM
8	Lifting power	10T
9	Increasing speed	40M/MIN
10	Rotating speed	50-120RPM
11	Drill pipe length	1500MM
12	drill pipe diameter	76MM/89MM
